Continuous Band Sealing Machine

Description:

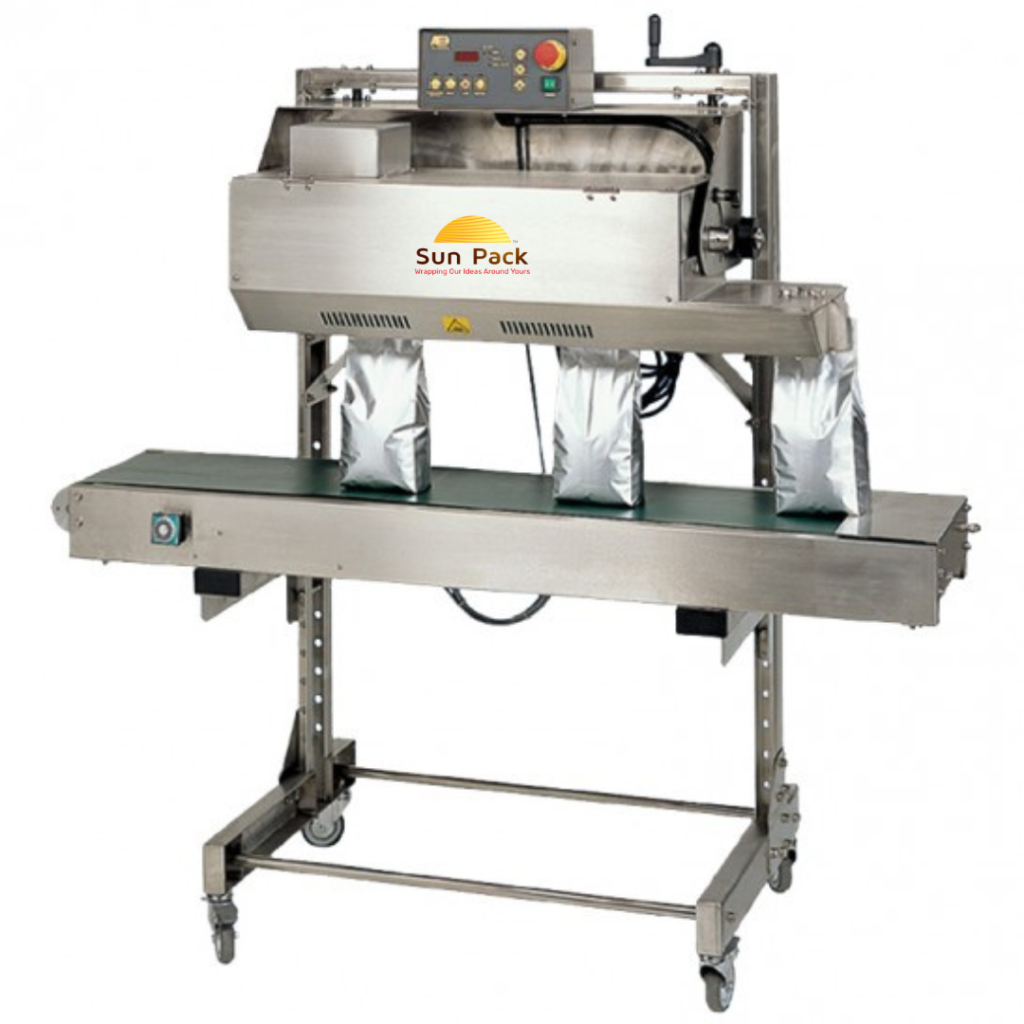

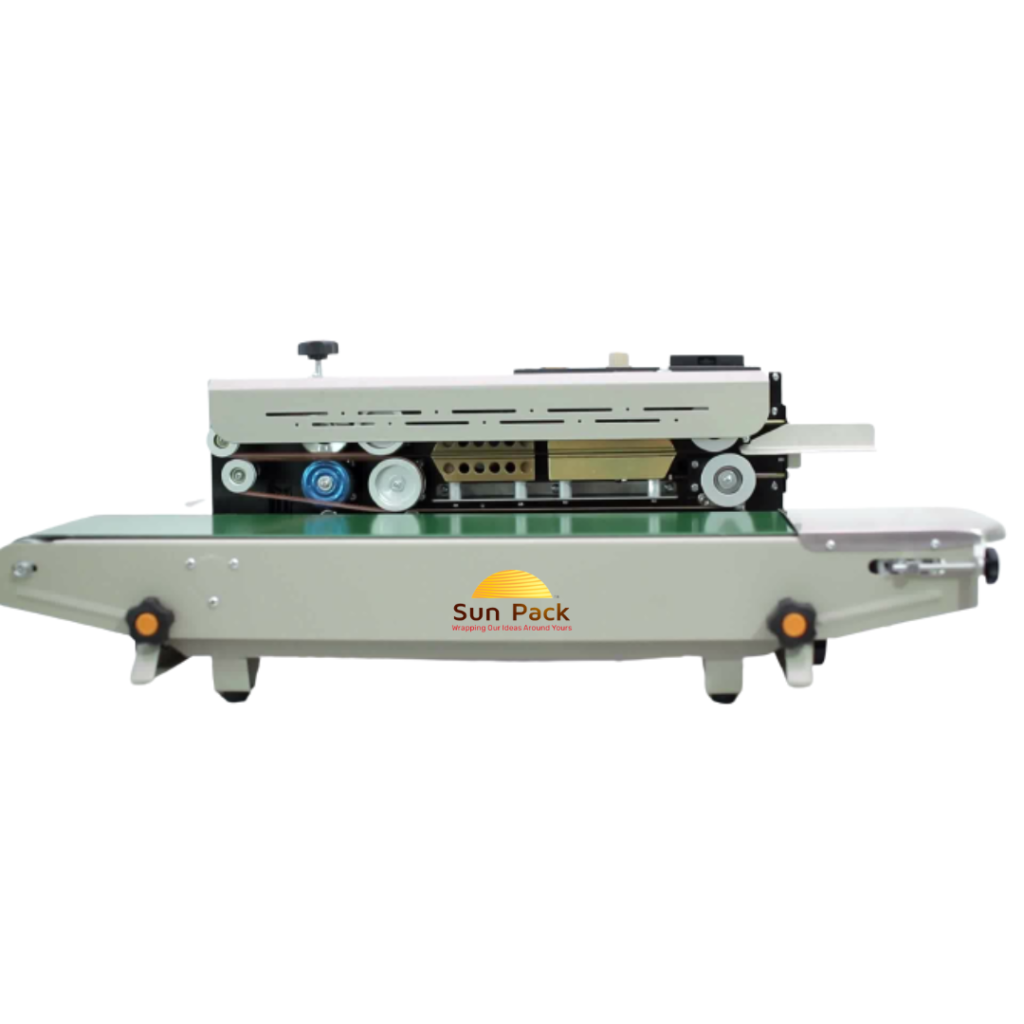

SPF-401 series continuous band sealer can seal plastic films made from various materials continuously. Embossing printing device and counting device can be equipped. There are three models, including horizontal model  , vertical model and console mode.

Features:

1. Constant temperature control and temperature is adjustable.
2. Stepless speed regulation.

Applications:

 continuous band sealer is suitable for sealing small packages.

Parameters:

	SPF-401, SPF-401A, SPF-401B
Voltage (V/Hz)	AC 220/50 110/60
Power (W)	50
Sealing Power (W)	300×2
Sealing Speed (m/min)	0-12 (0-16)
Sealing Width (mm)	12
Temperature Range (?)	0-300
Printing Type	Steel wheel for embossing printing (optional)
Distance from Sealing Center to Conveyor Table (mm)	10-40, 150-270, 10-40
Conveyor Table Size (L×W) (mm)	840×153
Max. Conveyor Loading for Single Package (kg)	?1
Overall Conveyor Loading (kg)	?3
External Dimensions (L×W×H) (mm)	840×380×320, 840×380×550, 840×550×800
Net Weight (kg)	32, 37, 40
