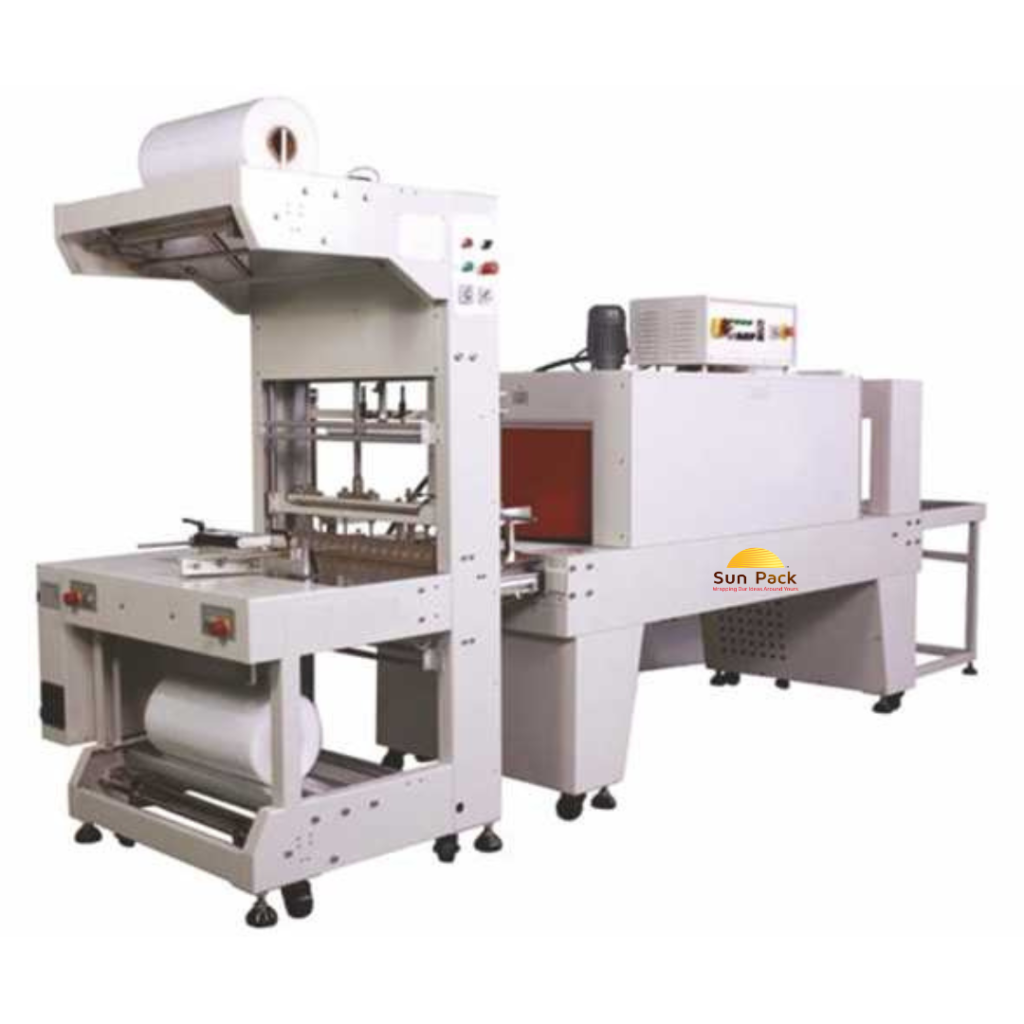

Web Sealer Shrink Tunnel Machine
Product Description
We offer Web Sealer Shrink Tunnel Machine that is designed for unique and special packing requirements of our clients.Produced using advanced sophisticated machines and infrastructure, these machines are high in performance, utility, easy to operate and serve for long.
Features:
Further, our range of machines finds wide application in various industries for varied purposes.Available in various specifications these can also be custom made as per the client’s requirements.
Double reel Automatic Shrink wrapping system for the bundling of any kind of cylindrical, rectangular and irregular shaped products. Auto Conveyor for automatic conveying of packs can be provided on LHS -/- RHS to suit individual requirement.
Product feeding manually arranged on the loading table with sens for the starting of the automatic cycle also. Space-saving sleeve, pneumatic pusher for automatic intake of packs.
Individual sealing bar with twin sealing elements. Endless PVC or S.S. slate chain conveyor. Specially designed S.S. tubular finned heaters for minimum power consumption and maximum heat transfer.
Heavy duty turbo blower for effective and efficient hot air circulation.Class insulation provided with glass wool and asbestos/calcium silicate sheet for machine panel and silicon tubing for conveyor rods.
Over backed heat resistant power coated used.
Lading and cooling zone provided as a standard feature as an outlet.
Heavy duty A.C. motor provided with gear box and controller for heavy load conveyor.
Stainless steel conveyor roller with silicone coated.
Auto temperature control. Full heavy duty power coated tunnel covers and electric panel board.
Technical Specification:
PLC controlled system
Geared motor driven pre-pulling system for both packing roll
Heavy duty structure
Shrink Tunnel Window Size (20″x 20″) With Roller Conveyor.
Sensor-Based Technology for sealing purpose.
Special pneumatically driven side sealing system, two sealers to provide both sides sealing to make it all around seal Digital Temperature Controller PID type Belt Conveyor for Product Moving. Automatically Transfer to beg/carton after sealing into the tunnel Special double insulated chamber to reduce power losses.
| Product Specifications: | |
|---|---|
| Brand | GPM |
| Power | 15 – 18 Kw, 3 phase |
| Speed | 6 – 8 bags per min |
| Minimum Order Quantity | 1 Unit |
